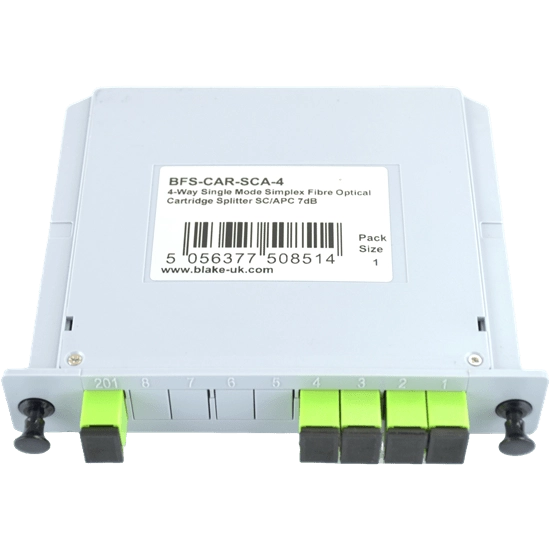

4-Way Fibre Cartridge Splitter Simplex SC/APC Single Mode
Product Code: BFS-CAR-SCA-4
- 4-Way PLC Cartridge Splitter SC/APC
- Compact and Modular Design
- Low Loss Design
- Integrates into Containment Boxes
Payment methods accepted
Product Description
4-Way Single Mode Simplex Fibre Optical Cartridge PLC Splitter SC/APC
PLC (Planar Lightwave Circuit) fibre optic splitters are an essential component of any optical network. These devices can be used to divide a single incoming signal into multiple outputs, enabling the loading and transmission of data over large distances. This helps to significantly reduce cost and maintenance time in networks as fewer components are required for the installation and configuration process.
PLC splitters are made from Fused Biconical Tapered (FBT) technology which minimises insertion loss and crosstalk, resulting in greater stability, lower bit-error rates, and improved system performance. They work by separating light with an angle polished connector at one end which allows the optical signal to enter into one port and be divided amongst multiple outputs.
They are widely used in Passive Optical Networks (PONs) for FTTH (Fibre-To-The-Home) applications. They offer reliability, high isolation between output ports, low insertion loss and good channel uniformity. They are compact and light-weight, offering an neat and easy installation making them ideal for a wide range of applications.
Ultimately, the splitters offer reliable performance without compromising on quality of service, making them the preferred choice for long-distance connectivity solutions.
We offer a range of reliable PLC Optical Cartridge Splitters that are modular in design and offer the installer time saving installations. They are designed to be installed in our range of IP65 containment boxes.
Features:
- Single Mode Simplex OS2 SC/APC Fibre
- 4-Way module
- For use with our containment boxes
Applications:
- CATV distribution and DOSIS data transmission
- SAT-IF and DTT distribution
- Other fibre optic communication systems
Technical Information:
| Product Code |
| |
| Connectors | Optical SC/APC | |
| Inputs | 1 | |
| Outputs | 4 | |
| Fibre Grade | G6527A1 | |
| Wavelength | 1260/1650nm | |
| Insertion Loss | <7.2/7.4dB | |
| Loss Uniformity | <0.6dB | |
| Polarisation Dependant Loss | <0.1dB | |
| Return Loss | >55/60dB | |
| Directivity | >55dB | |
| Wavelength Dependant Loss | <0.3dB | |
| Operating Temperature | -40~85°C |
Technical Specification
A Connector Type
SC/APC
Fibre
Passive Optical Network (PON) Fibre
Width
120mm
Depth
140mm
Height
27.5mm
Weight
0.1kg
