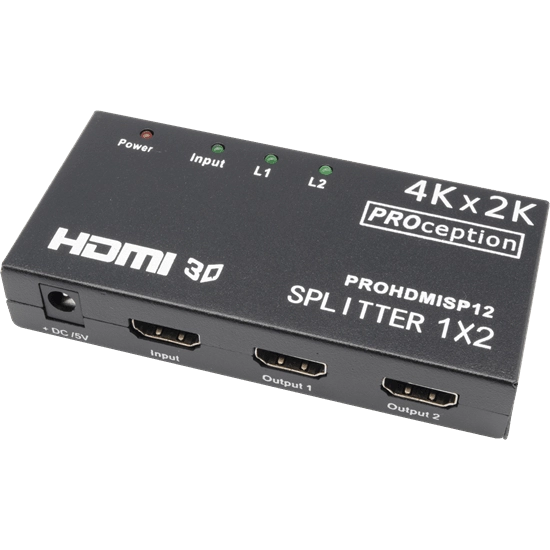

2-Way 1080P HDMI Splitter, 1.4b
Product Code: PROHDMISP12
- Watch HDMI device on 2 TVs
- DVD, Blu-Ray, monitors, Sky HD, etc.
- Supports resolution 3D/4K*2K
- Easy to use - plug & play
Product Description
2-Way HDMI Splitter HDMI1.4b, resolution up to 3D/4K*2K
A HDMI splitter is used to split one HDMI Input (eg. DVD Player, Set-Top Box, PC, etc) to multiple HDMI Outputs such as a HDTV. This allows you to view one devices on multiple TVs.
Features:
- HDMI 1.4b Compatible.
- Full HD 3D Support.
- Full HD 4k at 30Hz and 1080p Support.
- x.v.Colour (xvYCC) Support.
- DTS-HD Audio Support.
- High Definition Content Protection (HDCP) V1.2.
- Resolution up to 4k at 30MHz, 3840*2160, including 1920*1200, 720i, 720p, 1080i, 1080p.
- Compatible with DVI, using a HDMI to DVI adapter (sold separately).
- Compact design for space saving.
- Metal case for interference shielding.
- LED indicator to show port in use.
Technical Information:
Product Code | PROHDMISP12 |
HDMI Source Input Port | 1 |
Display Device Output Port | 2 |
Source Port Connector | 19 pin HDMI |
Display Device Port Connector | 19 pin HDMI |
HDCP Compliant | Yes |
HDMI Resolution | UP TO 3840*2160/30Hz |
Input Video Signal | 0.5 - 1.0 Volts P-P |
Input DDC Signal | 5Volts P-P(TTL) |
Deep Colour | 8/ 10/12bit deep colour |
Bandwidth | Up to 340 MHz |
Signal Speed | Up to 10.2 Gbps |
The length of input cable | ≤8m AWG26 HDMI standard cable |
The length of output cable | ≤8m AWG26 HDMI standard cable |
Power Consumption (max.) | 2.5 Watts |
Operation Temperature | -15 - 55 C |
Input Voltage | AC 100-240v |
Power Adaptor | 5V/2A |
Net Weight | 100g |
Dimension: L*W*H (mm) | 103*42*16 |
Technical Specification
Product Compliant With IR
No
Number of Outputs
2
Number of Inputs
1
Amplifier Includes Power Supply Unit (PSU)
No
Version
v1.4b
Band Width
10.2Gbps
Resolution
4K @ 30Hz
EDID Switch
No
Width
55mm
Depth
145mm
Height
205mm
Weight
0.29kg
Product Comparison
Resolution
4K @ 30Hz
4K @ 30Hz
4K @ 60Hz
4K @ 60Hz
Band Width
10.2Gbps
10.2Gbps
18Gbps
18Gbps
Number of Inputs
1
1
1
1
Number of Outputs
2
4
2
4
EDID Switch
No
No
Yes
Yes
